Director's console
HS-DB200

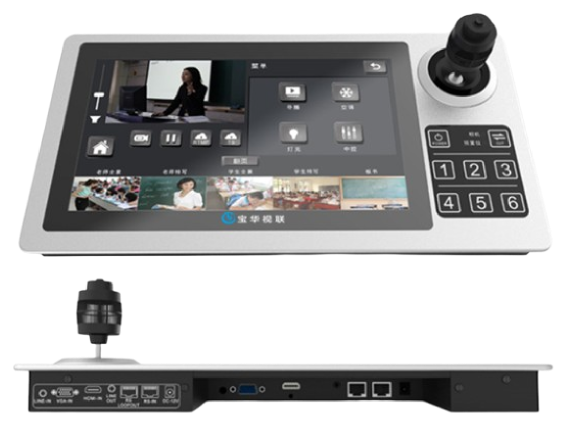

The HS-DB200 Digital LCD Touchscreen Production Console is a recording and broadcasting switching device that combines the control functions of a central control unit and production keyboard with local LCD display and touchscreen operation. Compact in size, the HS-DB200 offers easy installation and operation. It can be independently mounted on a lectern for teachers to operate filming independently, or installed in a production control room to enable operators to quickly direct, record, and broadcast.

Downloads

Contact Us
Core Functionality
  • Multi-Protocol Data Communication and Extensions
    Equipped with RS-IN (supporting RS232/RS485) and RS-LOOPOUT interfaces, the former enables data communication with the XD-11J for pan/tilt control and switching commands, while the latter allows direct connection to auxiliary pan/tilt units, director keyboards, and other peripherals, expanding device interconnectivity capabilities.
  • Full-scenario audio and video signal acquisition
    Features HDMI-IN (with audio), VGA-IN (without audio), and LINE-IN/OUT ports. VGA signals require LINE-IN to output PGM audio. LINE-OUT (3.5mm) can connect to an amplifier and speakers, accommodating diverse audio and video source input and output needs.
  • Precision Control of 3D Stereoscopic Gimbal
    Features a built-in 3D joystick for direct control of gimbal rotation and lens zoom, eliminating the need for additional equipment. Enables real-time, precise adjustments to gimbal cameras, streamlining the process of controlling shooting angles and framing.
  • Flexible function switching and operation
    Features a POWER touch button, SW toggle button, and numeric keys 1-6. The SW button switches between “Channel” and “Preset” functions. Once switched, the numeric keys enable channel switching or preset recall, offering clear operational logic adaptable to various usage scenarios.
  • 11.6-inch HD touchscreen display
    Equipped with an 11.6-inch high-definition LCD touchscreen, it not only clearly displays the recording and broadcasting host's director interface but also supports direct touch operation, replacing traditional physical buttons to enhance the interactive convenience and visual experience of the director interface.
  • Stable Power Supply and Adaptive Design
    Features a DC 12V power interface to ensure stable power supply for the device. Each port (HDMI/VGA/LINE, etc.) is specifically designed to accommodate different signal devices, forming a complete compatibility system from power delivery to signal input to guarantee continuous and stable operation.
Product Specifications
Power port Direct current 12 volts
RS-IN Data Input Interface Supports RS232 and RS485 signal inputs, primarily used for data communication between the recording host and the XD-11J.
RS-LOOPOUT Data loop-out port, capable of connecting peripheral devices (such as auxiliary PTZ cameras, director control keyboards, etc.). Data bypasses the recording and broadcasting host, exiting directly through this port.
LINE-OUT Audio output port, 3.5mm headphone jack, compatible with external amplifiers and speaker systems
HDMI-IN HDMI
VGA-IN VGA
LINE-IN Audio Input Interface
Camera Mount Joystick 3D pan-tilt control joystick for operating the gimbal rotation, zoom in/out, and function selection.
POWER DB2000
SW button Switch button
Numeric keys Can be used for switching corresponding channel preset positions
LCD touchscreen 11.6 inches
Director's Console HS-DB200 / Highly favored by numerous clients. We are an integrated video conferencing system solution provider with 16 years of industry expertise, offering comprehensive services including R&D, manufacturing, sales, installation, and support.
